BOLLARDS

 TECHNICAL SPECIFICATIONS

OPERATOR

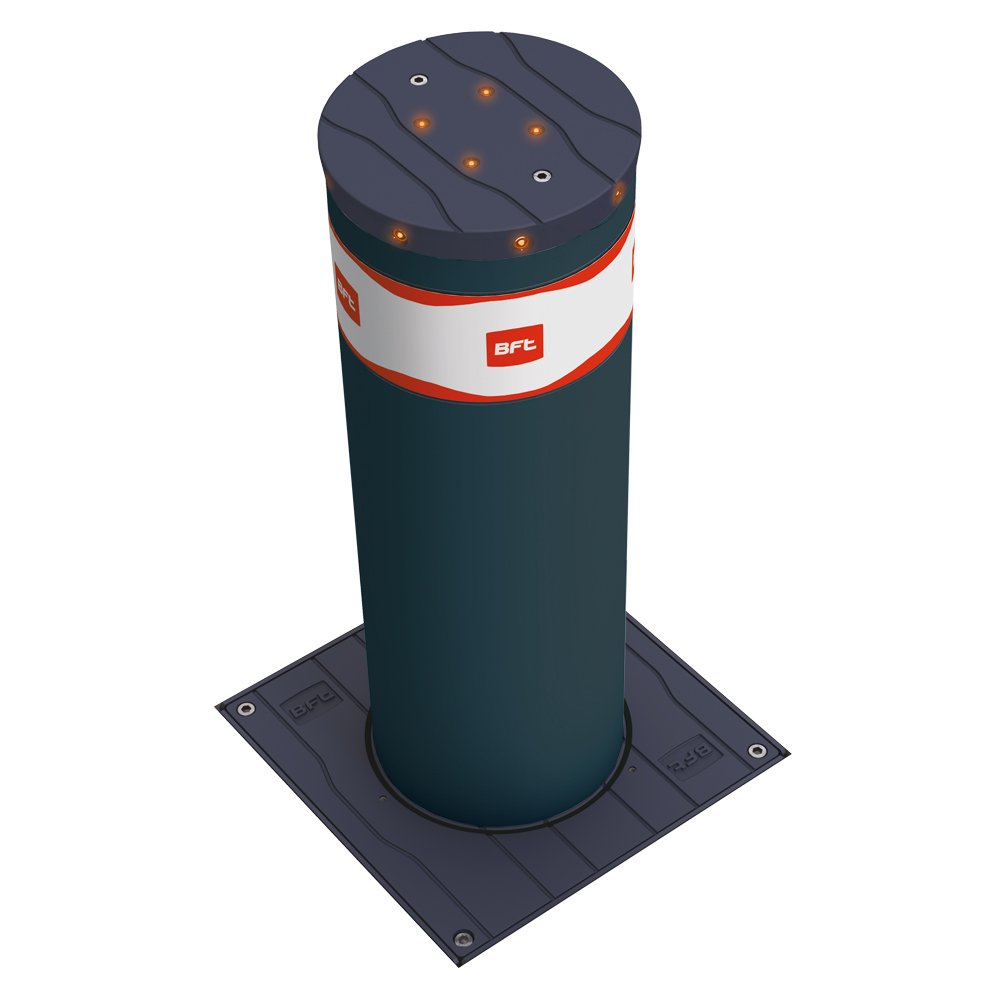

 STOPPY MBB
CONTROL PANEL
 PERSEO CBD
REVERSIBLE / IRREVERSIBLE OPERATOR
 REVERSIBLE
POWER SUPPLY
 230V~10%, 50 Hz single-phase
OPERATOR STROKE
 500mm / 700mm
ABSORBED POWER
 300W
THERMAL PROTECTION
 yes
OPENING AND CLOSING TIME
 6s + slowdown / 9s + slowdown
IMPACT REACTION
 10500 J
MAX TORQUE
 700 Nm
TYPE OF LOCK
 electric brake
TYPE OF LIMIT SWITCHES
 magnetic reed sensor
MANUAL RELEASE
 reversible in case of black-out
OPERATING CYCLE
 very intensive use
ENVIRONMENTAL CONDITIONS
 from -15C to + 60C
DEGREE OF PROTECTION
 IP67
OPERATOR WEIGHT
 900 N (~ 90 kg) / 1100 N (~ 110 kg)
