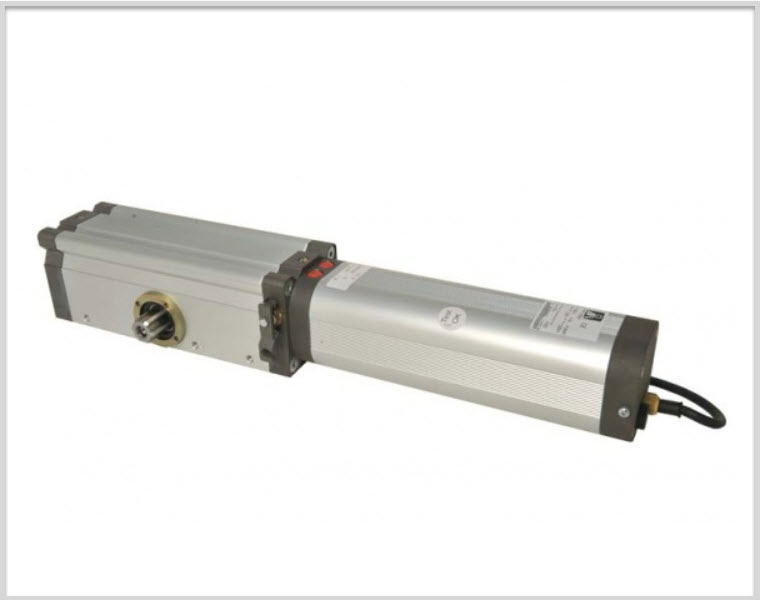

FORB

TECHNICAL SPECIFICATIONS

Model
FORB R
Type
Hydraulic
Control Panel
RIGEL 5/6 or ALGOR AC A
Operator
Irreversible
Power Supply
230V~+-10%, 50Hz single phase
Door Weight
720N = 2,4m2 (2 operators)
Absorbed Power
250W
Thermal Protection
Integrated
Slowdown
Openoing/Closing
Opening / Closing Speed
13s + slowdown
Output Revolutions
2,4 rpm
Max Torque
320N
Impact Reaction
Hydraulic clutch
Type of Lock
Hydraulic on opening/closing
Manual Release
Lever
Operating Cycle
Very intensive use
Environmental Conditions
From -15C to +60C
Degree of Protection
IP20
Operator Weight
130N(~13kg)
