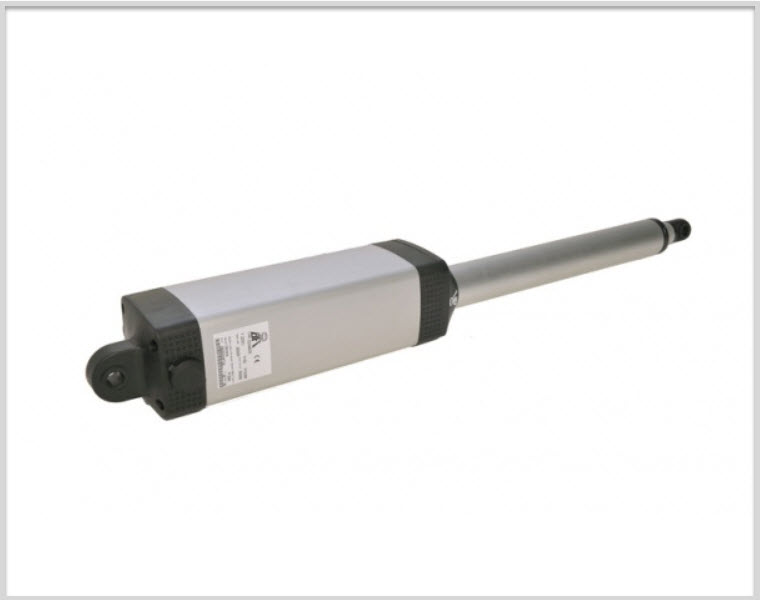

PHOBOS

TECHNICAL SPECIFICATIONS

Model
PHOBOS
Type
Electromechanical
Control Panel
ALTAIR P
Operator
Irreversible
Power Supply
230V~+-10%, 50Hz single phase
Leaf Weight
up to 2500N (~250kg)
Leaf Length
up to 1.8m
Absorbed Power
210W
Thermal Protection
Intergrated
Rod Working Stroke
280mm
Rod Speed
12mm/s
Opening / Closing Speed
18s
Impact Reaction
Electronic clutch on control panel
Type of Limit Switches
Mechanical on closing and opening
Manual Release
Release key
Operating Cycle
Semi intensive use
Environmental Conditions
From -20C to +50C
Degree of Protection
IP44
Operator Weight
50N(~5kg)
