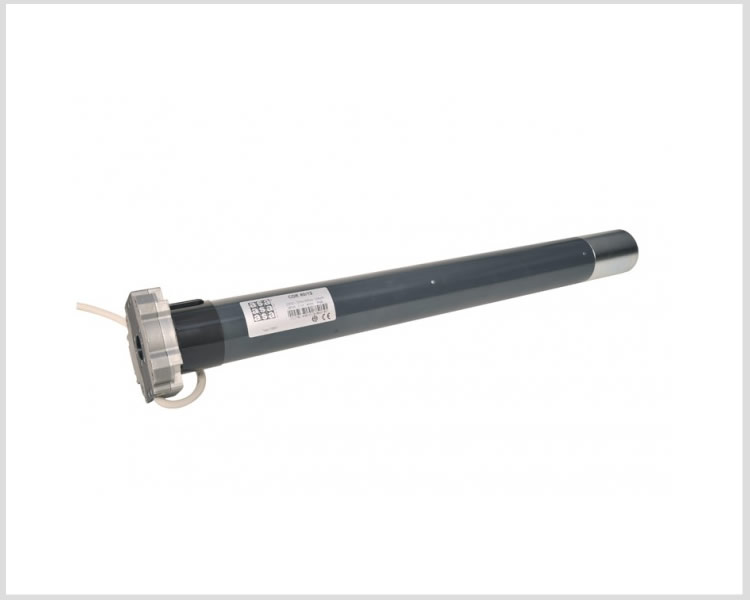

| ELECTROMECHANICAL OPERATOR -TECHNICAL FEATURES
|
|
| Control Panel | ELBA |
| Motorization | CDE 80-12 / CDE 120-8 |
| Power Supply | 230V ~ +-10%, 50Hz single phase
|
| Absorbed Power | 385/365 W |
| Force of Torque | 80/120 Nm |
| Speed | 12/8 rpm |
| Type Of Limit Switches | 27 turns
|
| Manual Release | Crunk |
| Motor Length | 625mm |
| Environmental Conditions | from -15o C to +60o C |
| Degree of Protection | IP44 |
