TECHNICAL SPECIFICATIONS |
|
| Model
|

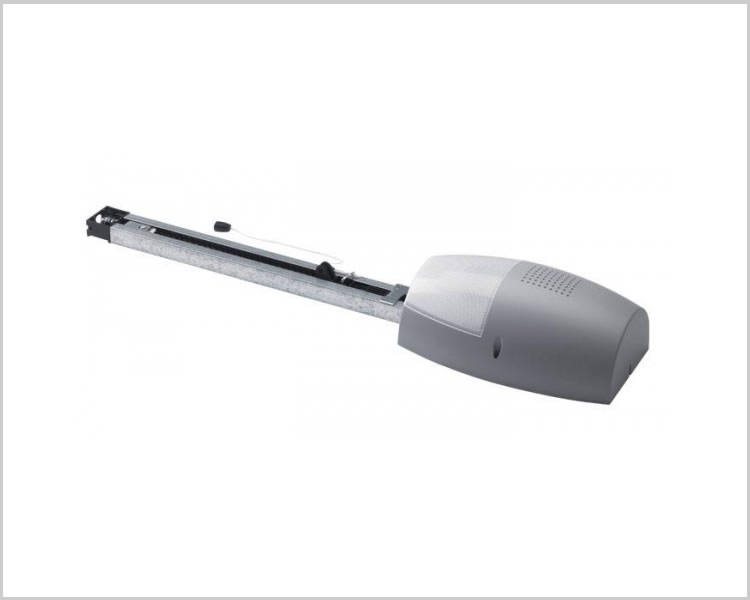

EOS 120
|
| Control Panel
|
VENERE D (INCORPORATED)
|
| Operator
|
Irreversible
|
| Power Supply
|
230V~+-10%, 50Hz single phase
|
| Absorbed Power
|
240W
|
| Force
|
1200N (~120kg)
|
| Thermal Protection
|
Intergrated
|
| Opening / Closing Speed
|
28s
|
| Impact Reaction
|
Electronic torque limiter integrated in the control panel
|
| Type of Limit Switches
|
Electronic with encoder
|
| Manual Release
|
Unlocking with robe
|
| Operating Cycle
|
Very intensive use
|
| Environmental Conditions
|
From -15C to +60C
|
| Degree of Protection
|
IPX0
|
| Operator Weight
|
80N(~8kg)
|
