DIPLOMAT

MOTORISATION

   TECHNICAL SPECIFICATIONS
 Type

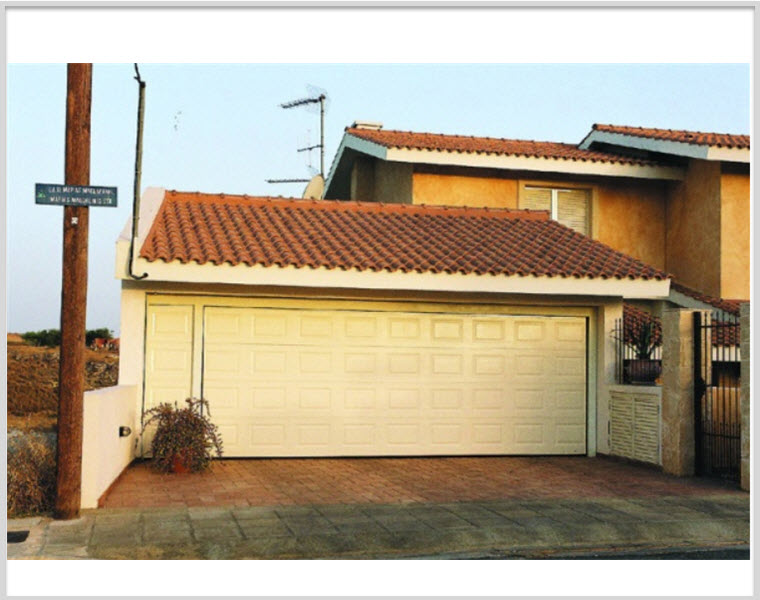

 Sectional door
 Panels
 Micro ribbed "sandwitch" panel with block, with embossed double  sheet-steel pre-lacquered, with inside reinforcement. Filling up with  polyurethane foam, CFC free.  Thickness of panel: 42mm. Block:  340x520mm. Male and female anti-pinching profile.  Suitable for  sectional doors in the residential field.
Colours
 Standard white or optionally any colour of the RAL-Scale
 End Caps
 2mm
 Track System
 R12 or R15 galvanized 2mm thickness equipped with C profile
 Torsions Springs
 15 000 cycles
 Sealing
 -Vertically direct appliend on tracks
 -Horizontally direct inserted on special bottom/top aluminium profiles
 Hinges
 -Side hinges adjustable type 2,5 mm thickness
 -Mid hinges of 2,5mm thickness
 -Bottom hinges with adjustable cable fixing and/ or with cable failure safety device
 Rollers
 -Nylon rollers with sealed bearing
 Options
 -Windows
