TECHNICAL SPECIFICATIONS |
||
|
|

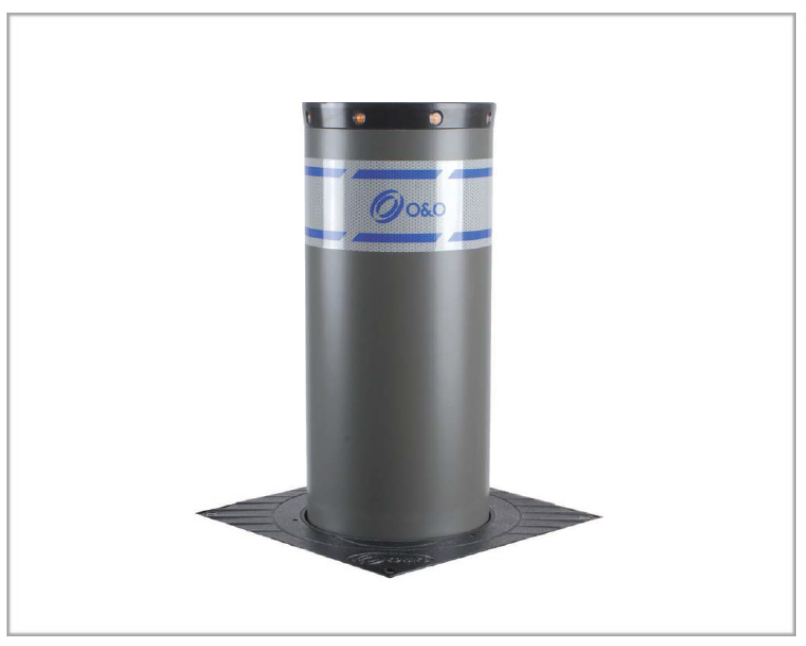

DAKOTA/500 N |
DAKOTA/700 N |
| Driven rod out of the ground
|
Ø219 x h.490 mm (±3mm) x th.5mm steel Fe 360 (S
235 JR) * |
Ø219 x h.700 mm (±3mm) x th.5mm steel Fe 360 (S
235 JR) * |

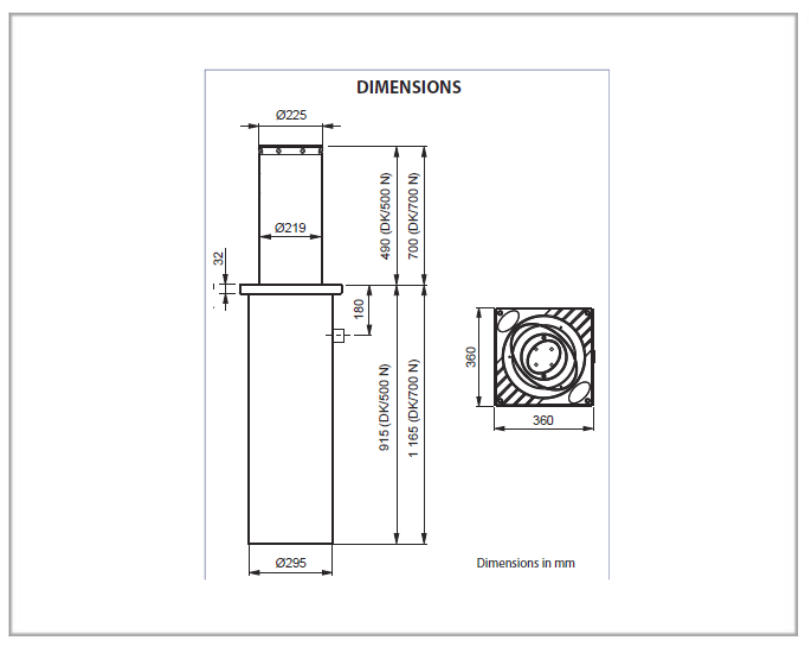

| Buried structure
|
DK/500 N: Ø295 x h.915
|
DK/700 N: Ø295 x h.1 165
|
| Foundation
|
Concrete
|
|
| Excavation
|
1 500 x 1 500 x h.1 300mm
|
1 500 x 1 500 x h.1 400mm
|
| Break-in resistance
|
150 000 J
|
|
| Impact resistance
|
15 000 J
|
|
| Allowable axial static load
|
Bollard up max 5 000 N; bollard down max 150 000 N
|
|
| Driven rod treatment
|
Cataphoresis and coating RAL7031 standard, other colour on request
|
|
| Passive visibility
|
Reflective film H=100 mm **
|
|
| Flange
|
Cast iron, cataphoresis black
|
|
| Top cover
|
Cast iron, cataphoresis black
|
|
| Actuator
|
Reversible; in oil
|
|
| Power
|
230 Vac ±10%, 50-60 Hz
|
|
| Working time
|
6.0 s (50 Hz)
|
9.0 s (50 Hz)
|
| Working temperature
|
-40°C *** +60°C
|
|
| Operating humidity
|
up to 100%
|
|
| IP grade
|
IP67
|
|
| Hand operation
|
In case of power failure, the bollards go down spontaneously
|
|
| Net weight
|
78 kg
|
92 kg
|
| Gross weight
|
82 kg
|
96 kg
|
* option, AISI304 or AIS316
** Customizable (optional)
*** With integrated heater active
|
ELECTRICAL FEATURES |
|
| Control unit
|
CDS-K
|
| Power
|
1-phase 230 Vac ±10%, 50-60 Hz (115 Vac with optional adapter)
|
| IP grade
|
IP54
|
| Working temperature
|
-40°C +60°C
|
| Operating humidity
|
up to 95%, non-condensing
|
| Use
|
Max. 4 for each control unit. Parallel control wiring possible for driving many groups of bollards.
|
| Power absorbed
|
0.30 kW for each bollard
|
| Stopping movement
|
Electric brake; 24 Vdc - 20 W (sustained 12 Vdc - 5 W)
|
| Signaling
|
On the top with high intensity LEDs, and buzzer
|
| Sensors
|
Open passage, closed passage, antitampering switch (option)
|
| Local/Remote control
|
· Digital inputs
· Radio remote control · RS485, TCP/IP (option) |
