Technical Specifications |
|
| Power supply
|
230V, 50Hz, mains fuse max. 10 AT
100-120 V, 50/60 Hz, mains fuse max. 16 AT |
| Power consumption
Standard drive unit Max. support |
200W/ resting 30W
400W/ resting 30W |
|
Standard equipment |
|
| - Semi-automatic drive
- Control unit built-in under the ground - Vertical safety switches - Outer wall and door sections made from aluminium profiles - Glass wall: 8 + 8 mm clear laminated - Glass door leaves: 15 mm tempered glass (2600 mm < HI ≤ 3000 mm) 12 mm tempered glass (HI ≤ 2600 mm) - Glass ceiling: 8+8 mm laminated glass - Door sections made from aluminium profiles - ASSA ABLOY activators - Fascia, standard height 60 mm - Emergency stop (inside) |
|
|
Accessories and Options |
|
| - Powder-coated finish

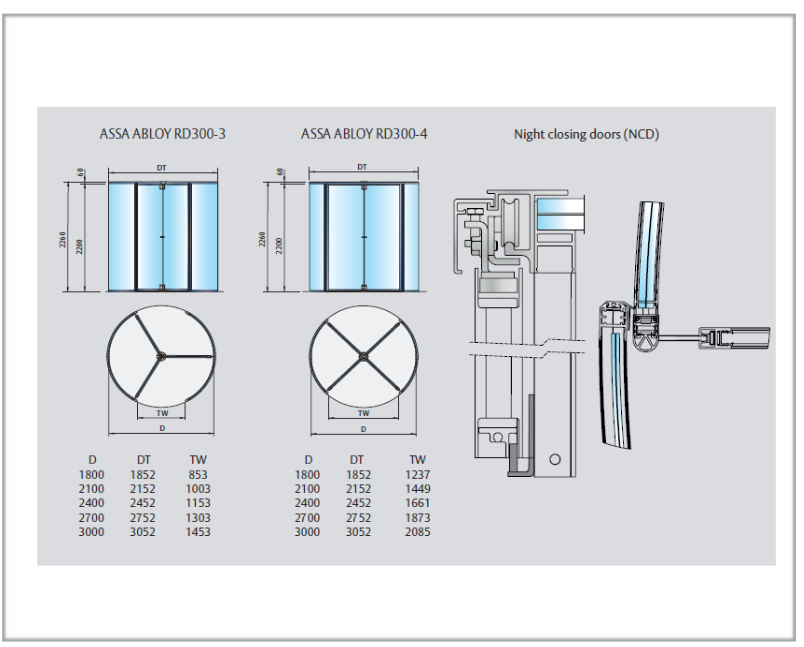

- Stainless steel cladding - Mechanical lock - Electromechanical lock - Night closing doors (NCD), manual - Mechanical lock on NCD - Internal height non-standard: 2000 - 3000 mm - Disabled push button - Additional safety on rotating part - Concealed sensor lid - Emergency stop (outside) - Ground ring for unfinished floor |
|
