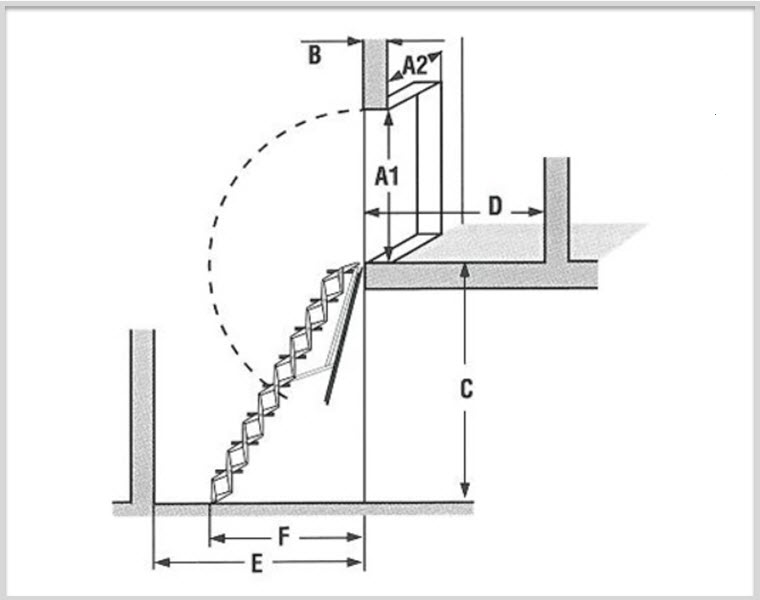

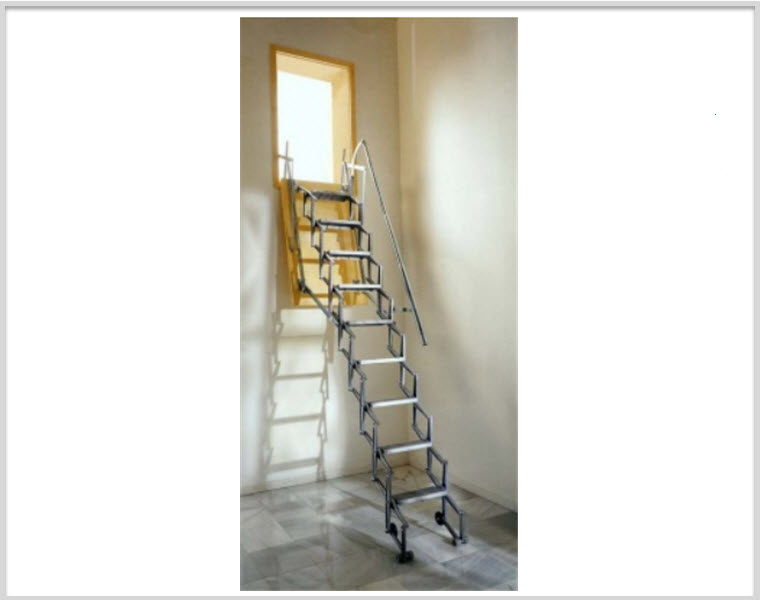

Staircase dimensions |
|||||||||||
| C
|
Room Height (cm)
|
260 |
270 |
280 |
290 |
300 |
310 |
320 |
330 |
340 |
350 |
|
|
Number of Steps (n)
|
9 |
9 |
10 |
11 |
11 |
11 |
12 |
12 |
13 |
13 |
| A1
|
Min. Opening Length (cm)
|
80 |
80 |
90 |
90 |
90 |
100 |
110 |
110 |
120 |
130 |
| E
|
Extension Clearance (cm)
|
170 |
175 |
180 |
185 |
190 |
195 |
200 |
205 |
210 |
215 |
| F
|
Stair Foot Rest Point (cm)
|
140 |
145 |
150 |
155 |
160 |
165 |
170 |
175 |
180 |
185 |
| A2
|
Opening Width (Standard 70cm)
|
Independent of length and height:
60-65-70-75-80-85-90-100 |
|||||||||
|
|
Frame Height
|
21-26-31-36 (48cm on request 85 cm)
|
|||||||||
| B
|
Min. Rotation Clearance
|
To customer specifications (Standard 25cm)
|
|||||||||
| D
|
Min. rotation clearance
|
75 cm
|
|||||||||
