TECHNICAL SPECIFICATIONS |
|
| Model
|

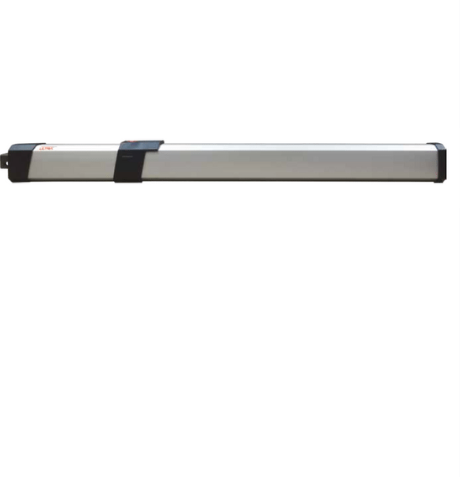

GIUNO ULTRA BT A50
|
| Control unit
|
THALIA P
|
| Board power supply
|
230 V
|
| Motor voltage
|
24 V
|
| Power consumption
|
90 W
|
| Max. width of door/
gate wing |
5 m
|
| Max. weight of door/
gate wing |
800 kg
|
| Useful rod stroke
|
392 mm
|
| Maximum angle
|
110 °
|
| Cycle time
|
20 s
|
| Type of limit switch
|
Magnetic
|
| Slowdown
|
Yes
|
| Locking
|
Selectable in opening/closing
|
| Release
|
Triangle key
|
| Impact reaction
|
D-Track
|
| Frequency of use
|
very intensive
|
| Protection rating
|
IP55
|
| Environmental conditions
|
-20 ÷ 60 °C
|
