TECHNICAL SPECIFICATIONS |
|

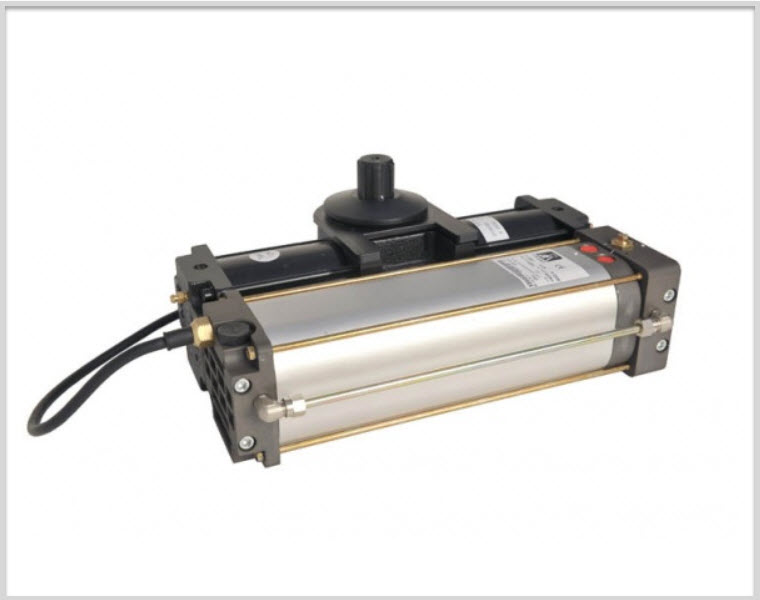

| Model
|
SUB
|
| Type
|
Hydraulic
|
| Control Panel
|
RIGEL 5/6 or ALGOR AC A
|
| Operator
|
Irreversible
|
| Power Supply
|
230V~+-10%, 50Hz single phase
|
| Leaf Weight
|
up to 8000N (~800kg)
|
| Leaf Length
|
up to 2,5m
|
| Maximum Opening Angle
|
130o
|
| Absorbed Power
|
250W
|
| Thermal Protection
|
Build in
|
| Slowdown
|
Opening/Closing
|
| Opening / Closing Speed
|
14s + slowdown
|
| Impact Reaction
|
Hydraulic clutch
|
| Type of Lock
|
Hydraulic on opening/closing
|
| Manual Release
|
Release key
|
| Operating Cycle
|
Very intensive use
|
| Environmental Conditions
|
From -10C to +60C
|
| Degree of Protection
|
IP67
|
| Operator Weight
|
220N(~22kg)
|
