Commercial Products: TITAN-F

Leaflet With different Cladding & Colors.pdf

REI 120 / 90   EN – 1634-1 FIREPROOF SECURITY DOOR

CHARACTERISTICS:
-Double armored door leaf made of electro galvanized metal sheet.
-Frame with embedded false frame electrostatic painted in RAL 9005 black anti-scratch.
-Perimetric profiles made of galvanized PVC coated metal sheet, anti-scratch in  RAL 9005 black.
-Heavy type adjustable hinges.
-CISA lock with 3 keys of four turns and construction key.
-Door leaf covering and internal fulfillment with fireproof material

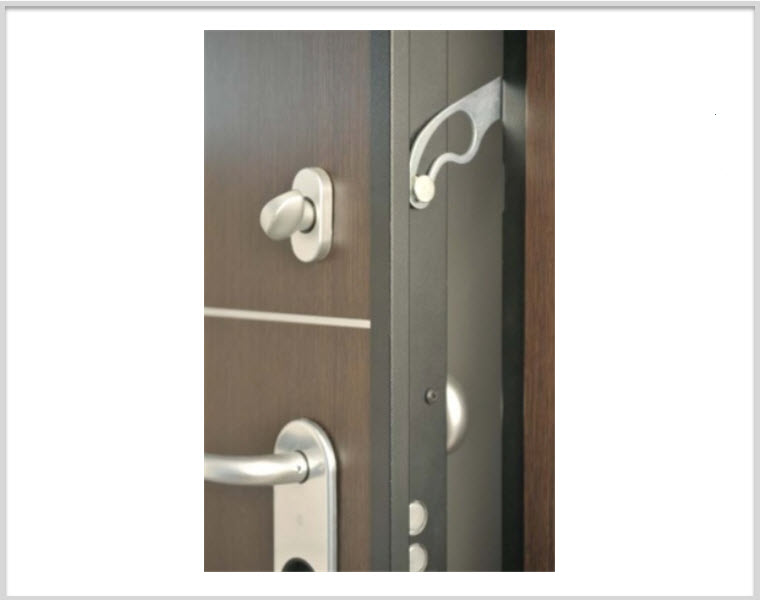

-Limiting opening device for controlled opening.
-Latch regulator.
-Automatic Door Bottom Seal.
-Full perimeter rubber gasket for the frame.
-Thermoexpanding gasket perimetrically

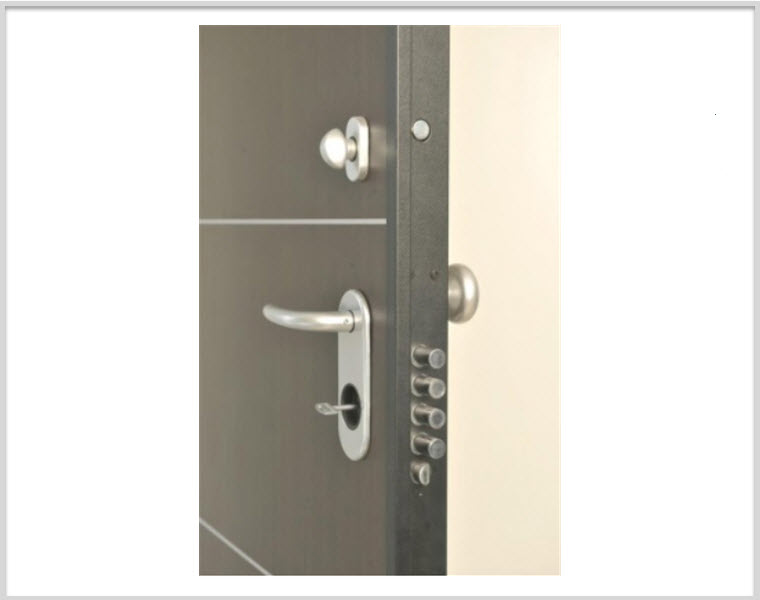

LOCKING POINTS:
-4 Central Security Bolts of the lock.
-1 Latch Bolt
-2 Side Moving Bolt.
-1 Top Moving Bolt.
-1 Limiting Opening Device Bolt.
-5 Stable Security Bolts
