MOTORISATION (Standard Instalation with height up to 3.90m)
MOTORISATION (Non Standard Instalation)
|
TECHNICAL SPECIFICATIONS |
|
| Type
|

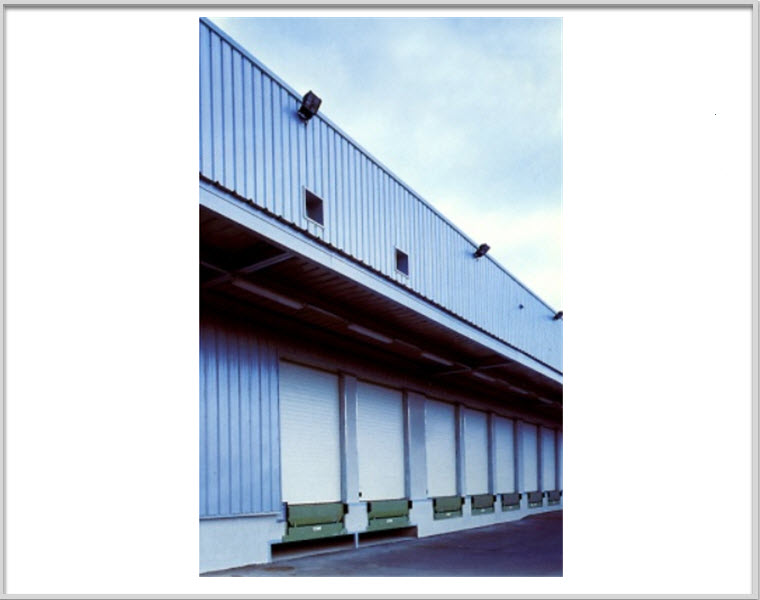

Sectional door
|
| Panels
|
Micro ribbed "sandwich" panel with embossed double sheet in aluminum or pre-lacquered, with inside reinforcement. Filling up with polyurethane foam, CFC free. Thickness of panel:42mm male and female profile. Suitable for sectional door in the industrial and residential fields. U-value 0.4 Kcal/h°C per square meter.
|
| Colors
|
Standard white or optionally all colors of the RAL - scale
|
| End Caps
|
2mm
|
| Track System
|
R12 or R15 galvanized 2mm thickness equipped with C profile
|

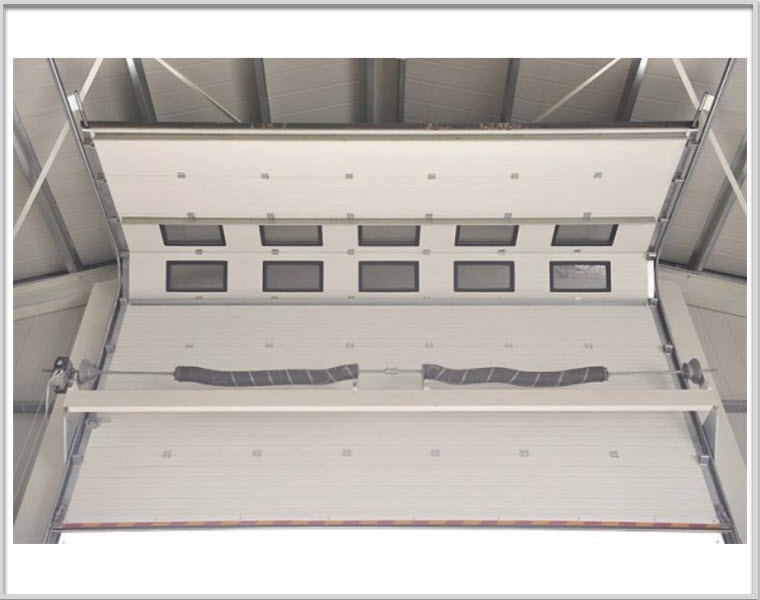

| Torsions Springs
|
15000 cycles
|

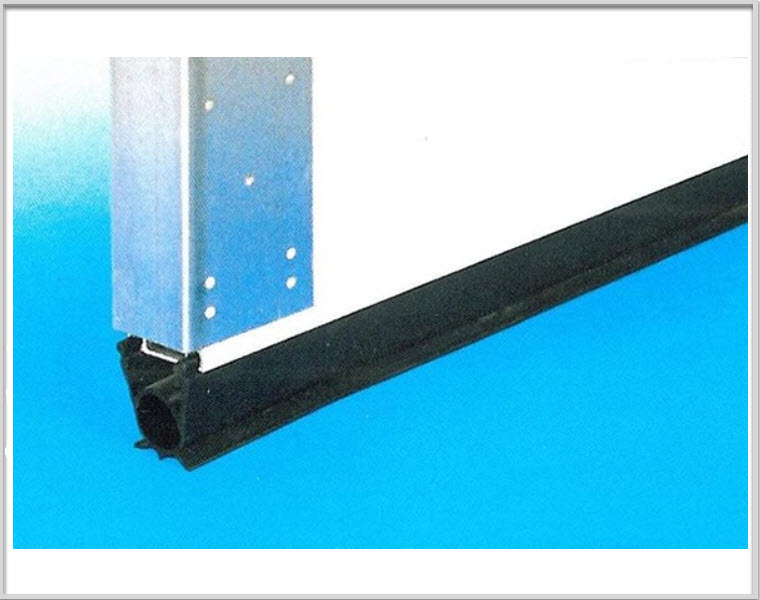

| Sealing
|
Vertically direct applied on tracks
Horizontally direct inserted on special bottom/top aluminum profiles |

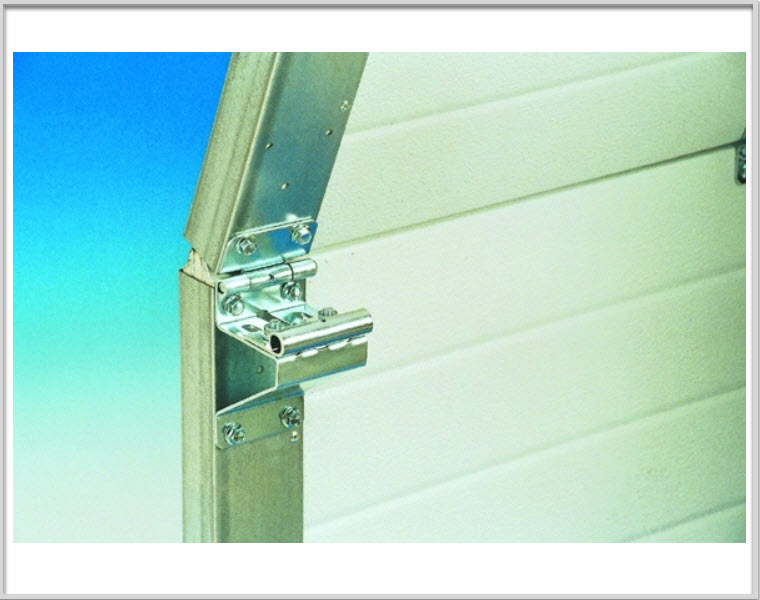

| Hinges
|
Side hinges adjustable type 2,5mm thickness
Mid hinges of 2,5mm thickness Bottom hinges with adjustable cable fixing and/or with cable failure safety device |
| Rollers
|
Nylon rollers with sealed bearing
|
| Options
|

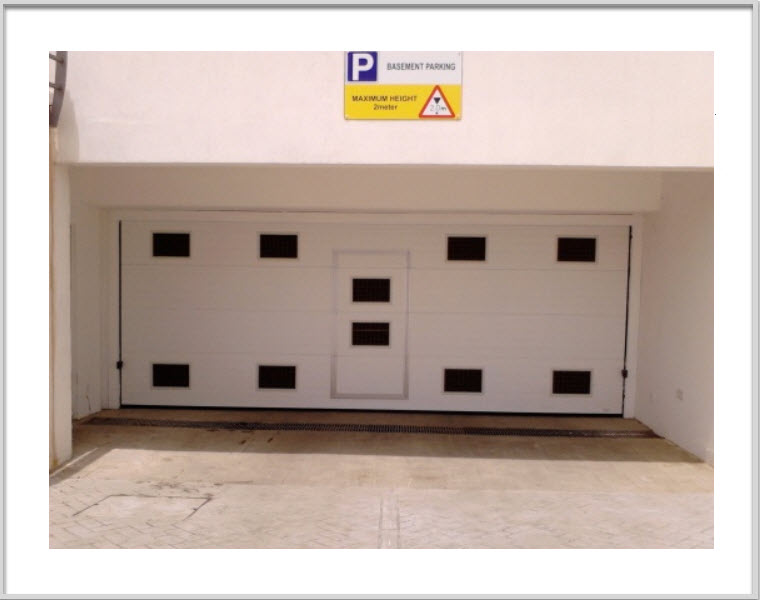

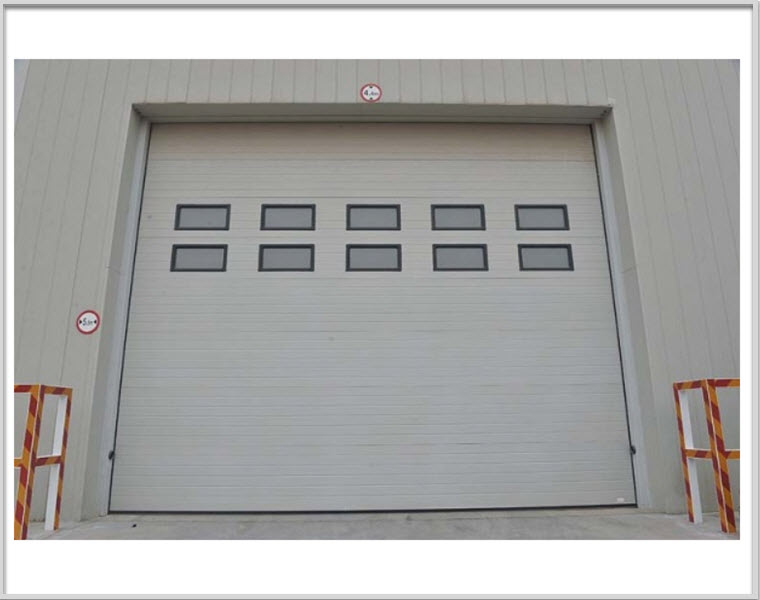

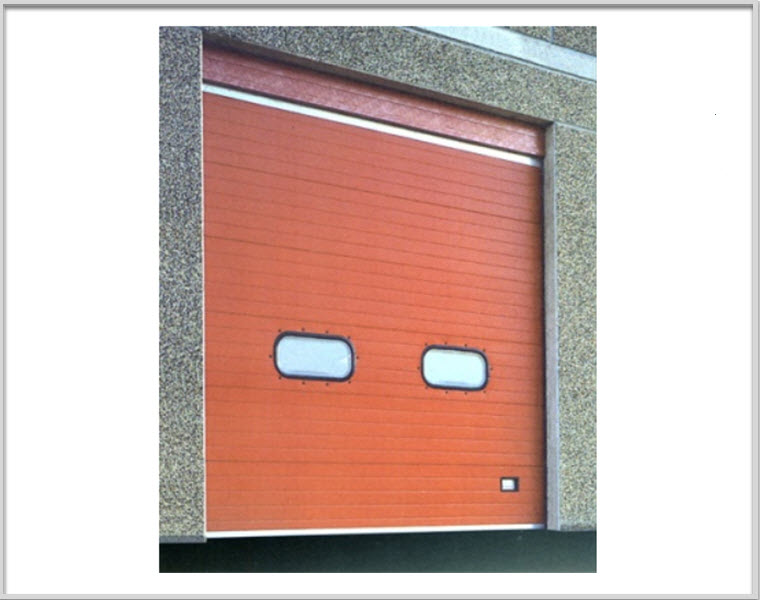

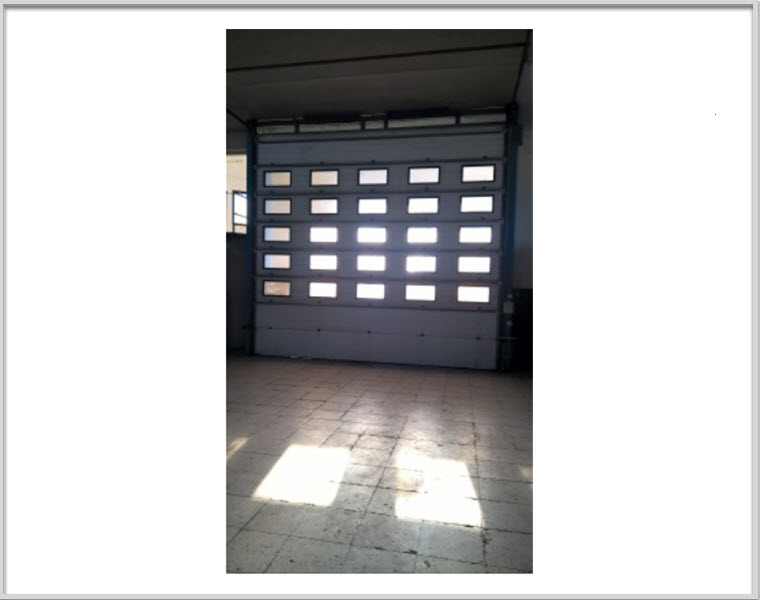

Windows

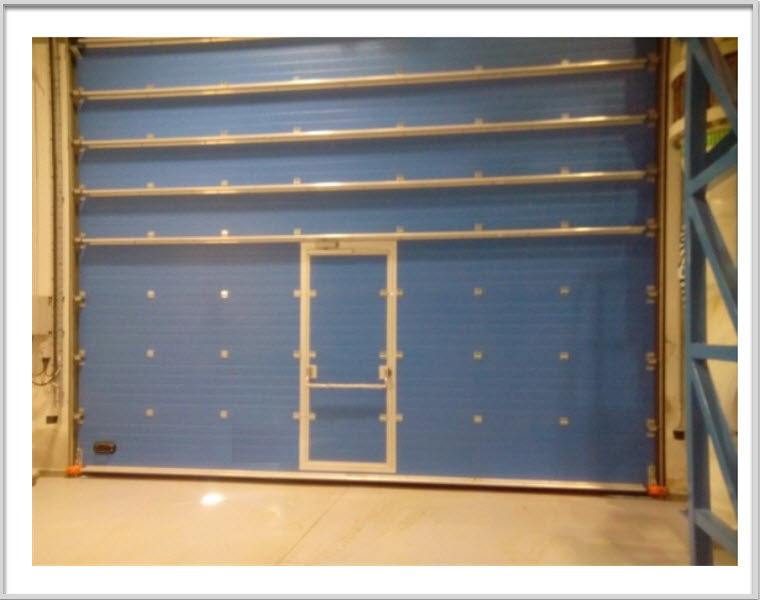

Passdoors |
