MOTORISATION (Standard Instalation with height up to 3.90m)
MOTORISATION (Non Standard Instalation)
|
TECHNICAL SPECIFICATIONS |
|
| Type
|

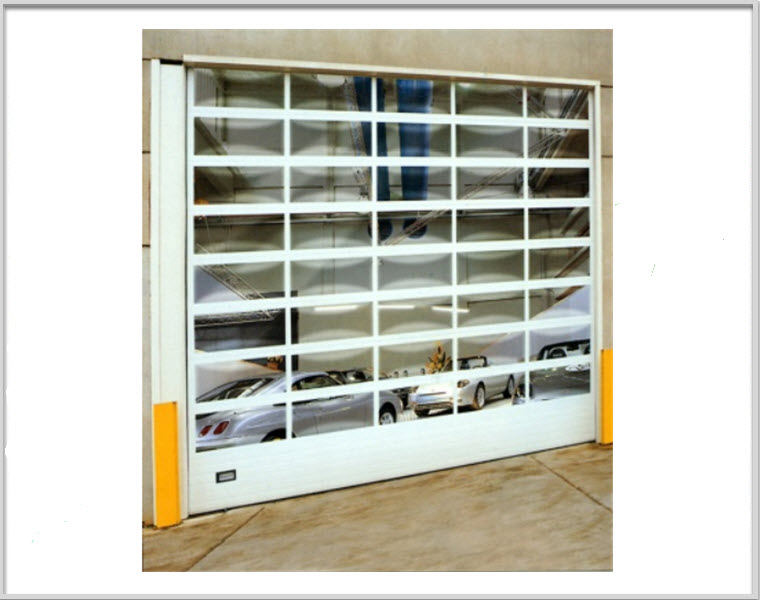

Sectional door
|
| Panels
|
Glazed section manufactured from extruded aluminum and the non-glazed bottom panel is a standard panel from the ALP-STD
|
| Colors
|
Silver anodized or optionally all colors of the RAL scale
|
| Track System
|
R12 or R15 galvanized 2mm thickness equipped with C profile
|
| Torsions Springs
|
15000 cycles
|
| Sealing
|
Vertically direct applied on tracks
Horizontally direct inserted on special bottom/top aluminum profiles |
| Hinges
|
Side hinges adjustable type 2,5mm thickness
Mid hinges of 2,5mm thickness Bottom hinges with adjustable cable fixing and/or with cable failure safety device |
| Rollers
|
Nylon rollers with sealed bearing
|
| Options
|
Passdoors
|
