The doors are of fully galvanized metal painted in Ral or digital colors, with 3 or 4 side frame, certified and approved for REI 60 and REI120.
|
PROGET REI 60 AND REI 120 DOORS COMPLYING TO UNI 9723 |
|

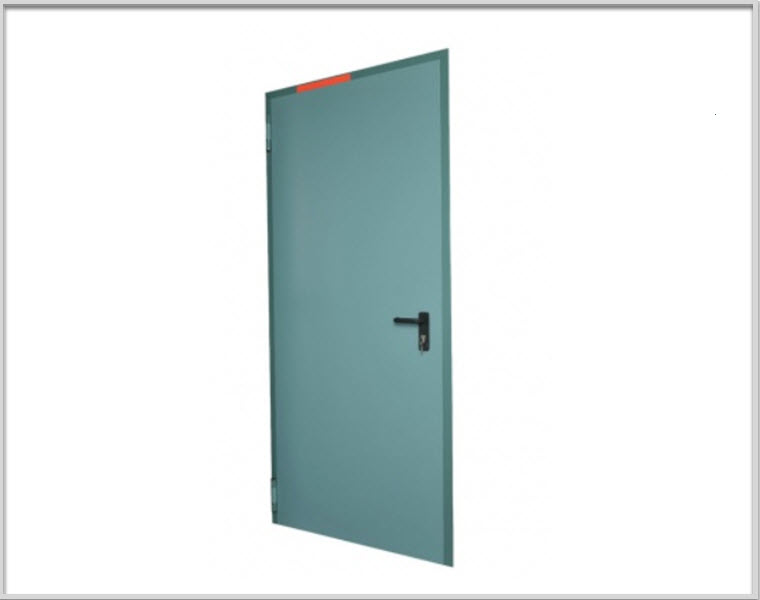

| PROGET door, REI 60 minutes fire rating according to the standard UNI 9723, supplied with written approval of the Italian Ministry of the Interior, made of completely galvanized sheet steel. Frame with anchors for mortar fixing. Lock for fire-rated doors, CE marked according to EN 12209 with cylinder hole and insertion for key patent type incluted.

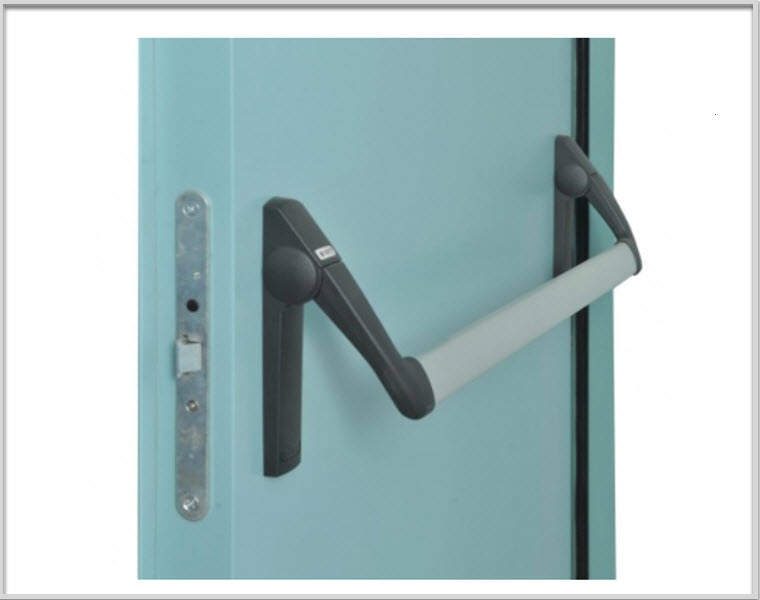

Black safety handle with steel core, height of axis from the ground:1050 mm for all doors. Two hinges: 1 ball-bearing hinge with screws for vertical adjustment, I hinge with self-closing spring. Safety bolt on hinge side leaf edge. Internal stiffeners for panic bar and overhead doorcloser self expanding gaskets. Standard surface treatment with epoxy-polyester powders, anti-scratch orange-skin surface. Standard colour light pastel turquoise. On request finishing in RAL colours or decorative with NDD – Digital Décor. |
|
| Sound insulation with automatic sill seal
|
REI 60 = 29.5dB
REI 120 = 30 dB |
| Weight approximately
|
REI 60 ca. 37 kg/mª wall opening
REI 120 ca. 46 kg/mª wall opening |
|
PROGET MULTIPURPOSE
|
| PROGET multipurpose door made of completely galvanized sheet steel, with frame. Standard lock with cylinder hole and insertion for key patent type incluted.
Black safety handle with steel core, height of axis from the ground: 1050 mm for all doors Two hinges: 1 ball-bearing hinge with screws for vertical adjustment, I hinge with self-closing spring. Safety bolt on hinge side leaf edge. Internal stiffeners for panic bar and overhead doorcloser. Standard surface treatment with epoxy-polyester powders, anti-scratch orange-skin surface. Standard colour light pastel turquoise. On request finishing in RAL colours or decorative with NDD – Digital Décor. |
