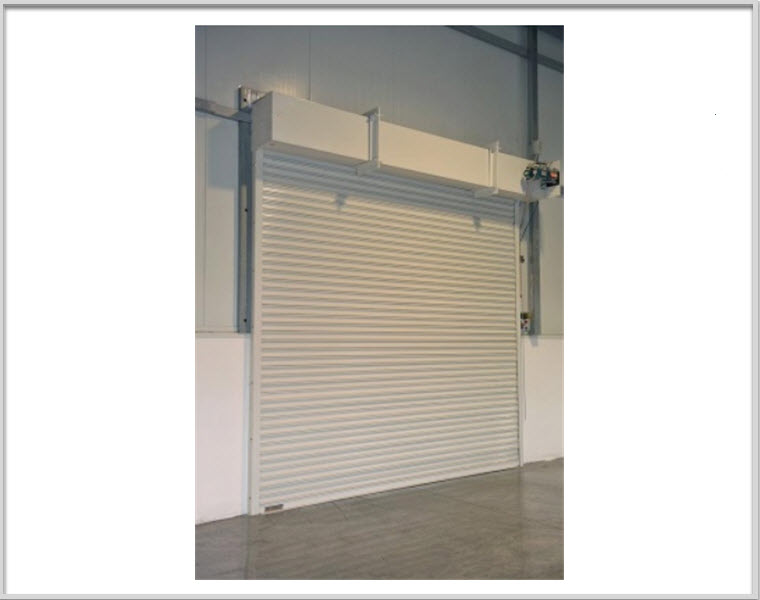

STEEL-FIRE SHUTTERS

The fire shutters are individually designed to suit specific openings. They are constructed from high performance interlocking paths and a T-section bottom rail running in side channels and fixed to the structure. They are designed to comply with the requirements of BS476: Part22:1987 and certification for 4-hours fire protection.

TECHNICAL SPECIFICATIONS

 - Curtain constructed from 75 mm wide curved interlocking galvanized steel lath with mild steel  and locks and galvanized steel angle.
 - Side guides constructed from minimum 3mm x 63mm channel incorporating drop bar guides.  Bolted to 75mm x 50mm mild steel angle.
 - Optional smoke seals are available
 - Manual, hand chain or electrically operated
 - Electrical supply:  240 volt, single phase OR 415 volt, 3 phase
