TECHNICAL SPECIFICATIONS |
|||||
|
Model |

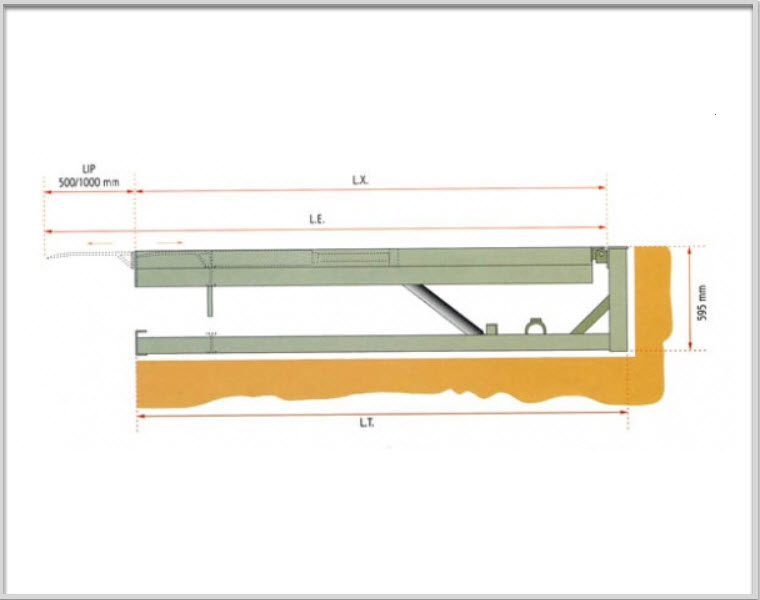

Width |
L.X |
L.E |
L.T |
PIT FRAME SIZE AxBxH |
|
Telesco 20.23/5 |
2000 |
2360 |
2870 |
2500 |
2040x2500x600 |
|
Telesco 20.26/5 |
2000 |
2660 |
3170 |
2800 |
2040x2800x600 |
|
Telesco 20.33/5 |
2000 |
3360 |
3870 |
3500 |
2040x3500x600 |
|
Telesco 20.38/5 |
2000 |
3860 |
4370 |
4000 |
2040x4000x600 |
|
Telesco 20.43/5 |
2000 |
4360 |
4870 |
4500 |
2040x4500x600 |
|
Telesco 20.26/10 |
2000 |
2660 |
3670 |
2800 |
2040x2800x600 |
|
Telesco 20.33/10 |
2000 |
3360 |
4370 |
3500 |
2040x3500x600 |
|
Telesco 20.38/10 |
2000 |
3860 |
5370 |
4000 |
2040x4000x600 |
|
Telesco 20.43/10 |
2000 |
4360 |
2870 |
4500 |
2040x4500x600 |
|
Telesco 225.23/5 |
2250 |
2360 |
3170 |
2500 |
2290x2500x600 |
|
Telesco 225.26/5 |
2250 |
2660 |
3670 |
2800 |
2290x2800x600 |
|
Telesco 225.26/10 |
2250 |
2660 |
3000 |
2800 |
2290x2800x600 |
